Specifications
Length Overall | 22' |
Bridge Clearance | 4' 11 |
Max Beam | 8' 5 |
Draft | 35 |
Weight | 4100 lbs |
Fuel Capacity | 40.00 gal |
Water Capacity | 12.00 gal |
Hull Material | Fiberglass |
Horse Power | 250 HP |
Overview
The next H-Series is here. The all-new H2 is the next chapter in the Four Winns bowrider legacy. A continuation of refinement and innovation we are proud to present.

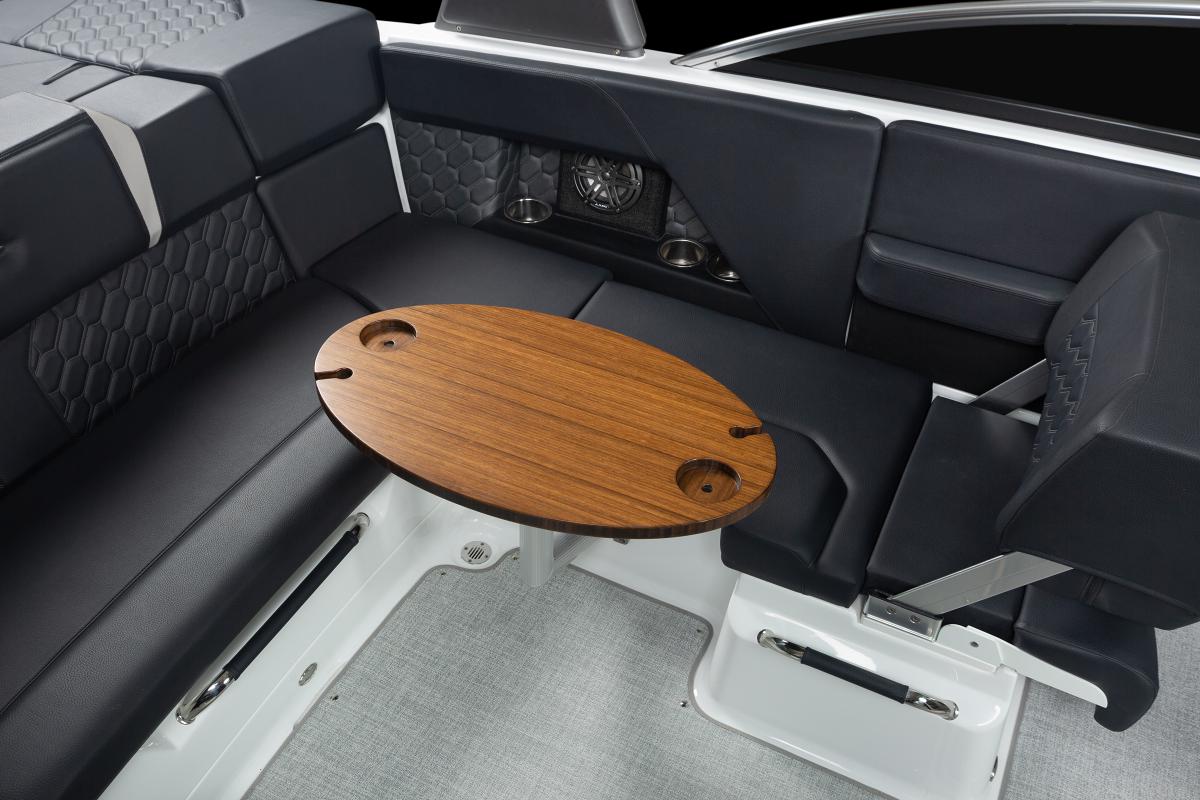

The H2 Outboard has a generous 2-foot-10-inch-deep aft platform, with about 11 inches of step space forward of the motorwell. The sun pad is about 2 feet, 10 inches deep and has lift-up backrests port and starboard, which also uncover walk-throughs to the cockpit. A bench seat wraps around to port, with a pivoting backrest at the console position that creates a lounge when angled forward. An electric ram lifts the sun pad and aft seat section to reveal a stowage compartment, which can be equipped with an optional portable head and privacy curtain in the space that would hold the engine in a sterndrive version of the H2.

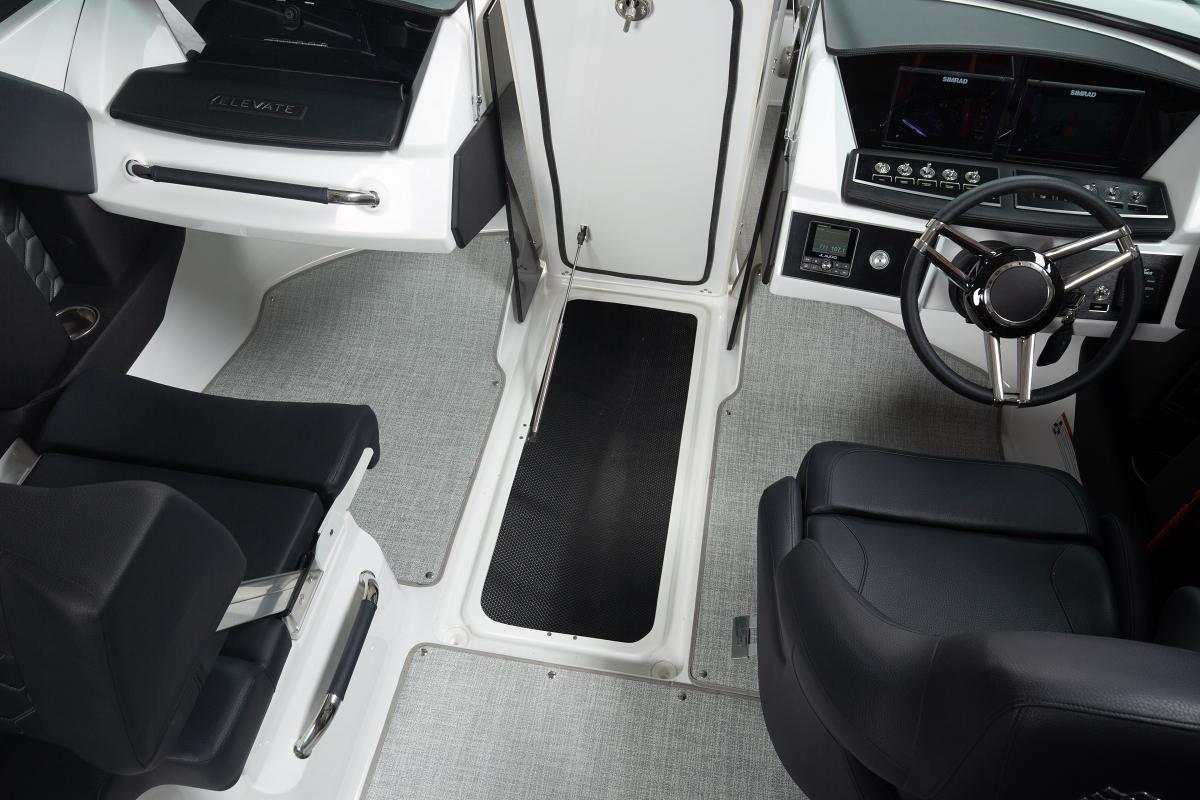

At the helm, all instrumentation is presented on a Simrad GO7XS touchscreen, with a duplicate adjacent Simrad for navigation as an option. There’s a wireless phone charger tucked into the inwale. The bow seating is 1 foot, 7 inches deep, great for comfort and security.
Key features
- Port console seating coverts into an aft facing lounge
- Dual touchscreen controls
- Easy boarding with both starboard and port walk-through access points
- Unique Cool Touch vinyl’s offer hot interior color options without burning your backside
High Points
- Standard MFD offers more information than a set of gauges ever could.
- Head where the engine used to be is a nice family option.
- Exclusive single lever to adjust fore and aft, and the rotation of the helm seat works like a charm.
Features
Hull and Deck
- Anchor locker w/ lid, latch & tie off
- Bow & stern eyes, stainless steel
- Bow rails, stainless steel
- Cleats, fixed, stainless steel
- Exterior color, all white
- Exterior gel accent stripe, choice of color
- Fiberglass stringer system
- Horn
- Ladder, stern, angled, deep-reach, hidden w/ wide steps
- Meets applicable USCG & Canadian regs; NMMA certified using ABYC stds.
- Navigation lights, LED
- Rub rail w/ stainless steel insert
- StableVee® hull Next Gen
- Swim platform, stern
- Thru-hull fittings, stainless steel
- Windshield header, polished
- Windshield w/walk-thru, full-height, curved glass, exclusive design
- Winning edge owner protection plan
Cockpit
- Assist handle(s), stainless steel, vinyl wrapped
- Beverage holder(s), stainless steel
- Coaming pads w/ rich hand-fitted vinyl & comfort padding
- Cooler, carry-on
- Cooler, carry-on, cockpit basement, 72qt.
- Courtesy lights
- Fiberglass liner, skid-resistant, self-draining
- Interior color scheme, choice of color
- Port console, glove box
- Seating, bow cushions, hinged
- Seating, cockpit, U-shaped
- Seating, ComfortRide, flip-up bucket bolster(s)
- Ski locker, in-floor, w/ gas-assist hinged lid & mat
- Storage, aft, cockpit basement
- Storage, beneath sundeck, mesh bags
- Storage, bow & cockpit, beneath seats
- Storage, cockpit, sidewall storage w/ beverage holders
- Sundeck, aft w/ chaise lounge
- Trash receptacle(s)
- Upholstery, premium contoured vinyl w/ custom detailing
- Walk-thru transom
- Water intrusion management system
Entertainment
- Speakers, (4)
- Stereo, w/ AM/FM radio, Bluetooth®
- USB port(s)
Helm
- Dash, rich hand-wrapped vinyl, w/ custom detailing & LED accent lighting
- Depth sounder
- Emergency engine shut-off
- Instrumentation, helm: touch screen, integrated gauges and GPS speed
- Lighted switches, LED
- Phone charger/holder, wireless
- Steering wheel, deluxe, tilt
Engine / Systems / Drive
- Battery single w/ on-off switch
- Battery(ies)
- Bilge pump(s), automatic
- Hydraulic tilt steering (std on 150 hp and up)
- Outlet, 12V
- Outlet, USB charge port(s)
Wiring harness w/ sealed connectors and tin coating for corrosion resistance
